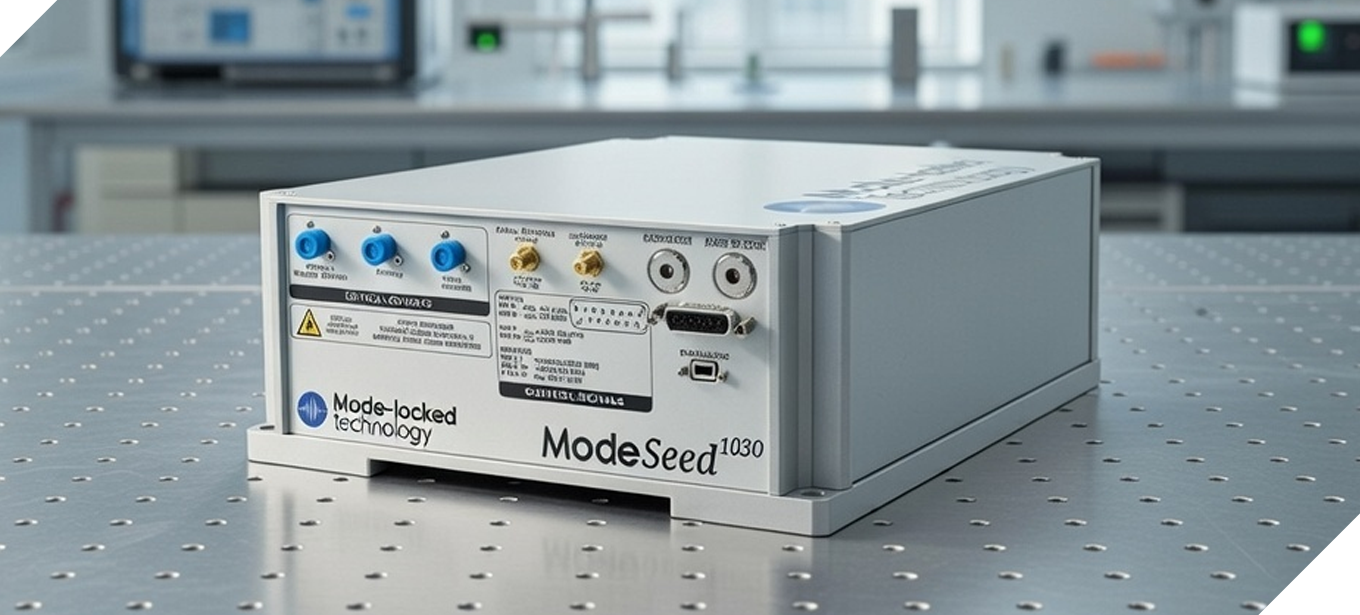

ModeSeed LowNoise
ModeSeed Low-Noise delivers class-leading phase noise and timing jitter performance (<20 fs integrated from 1 Hz to 1 MHz), combined with fully automated repetition-rate tuning and locking for uncompromising stability..
- Pulse repetition rate (frep): any chosen between 20 and 73 MHz
- Central wavelength: 1030 nm
- Ultra-low phase noise
- Self-starting, maintenance-free, button-operated
- Various repetition rate actuators available (PZT, stepper motor)
- Long lifetime
- No saturable absorber
- Single-box solution
| Central wavelengths | 1030 nm +/- 1 nm |
| FWHM bandwidth | > 20 nm |
| Pulse repetition rate (frep) | Chosen between 20 and 73 MHz (others upon request) |
| Output power | > 20 mW at frep = 72 MHz |
| Pulse duration | Chirped (typically > 3 ps) |
| Output type | Fiberized (FC/APC connector) |
| Polarization | Linear |
-

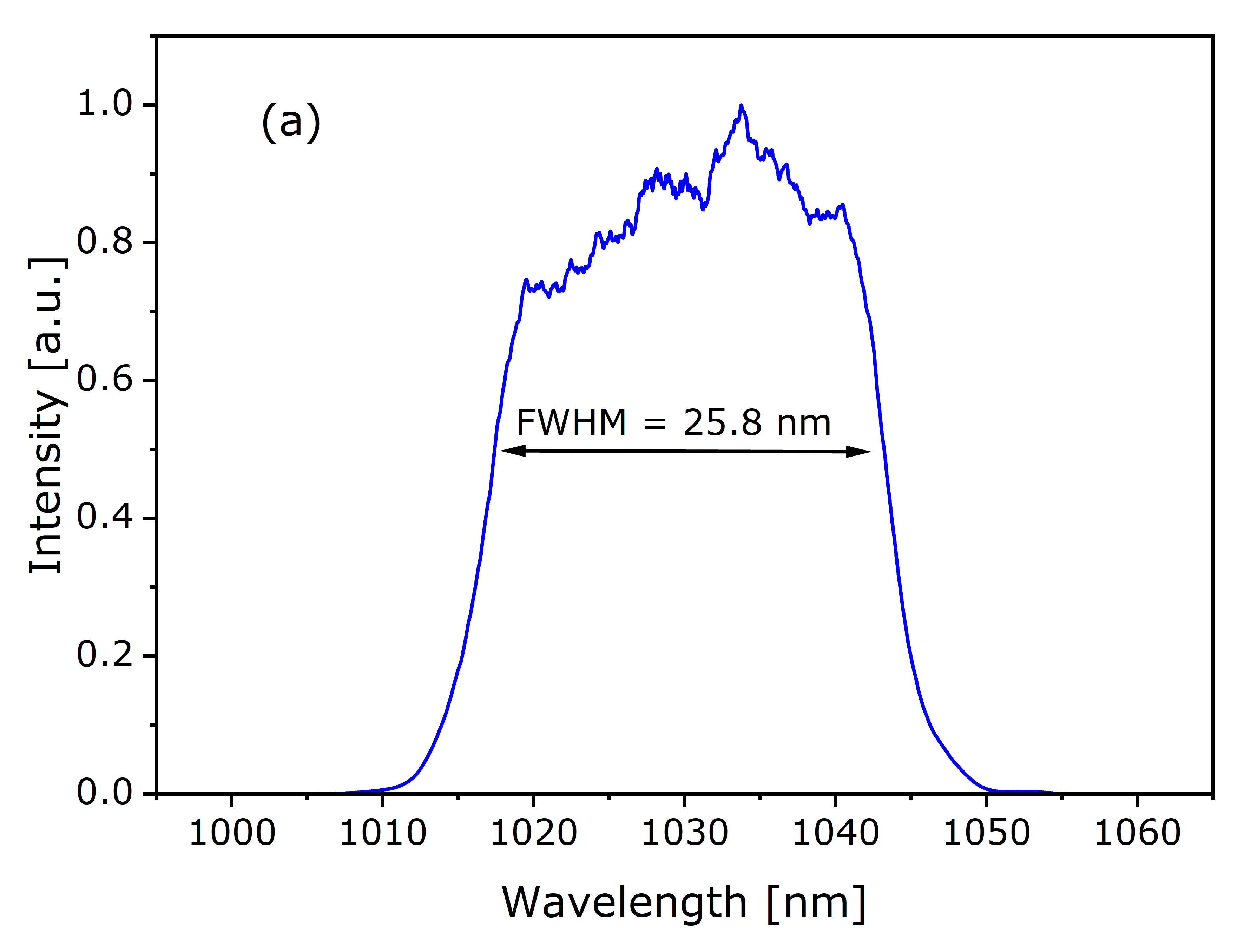

Optical spectrum generated from the main output (linear scale)
-

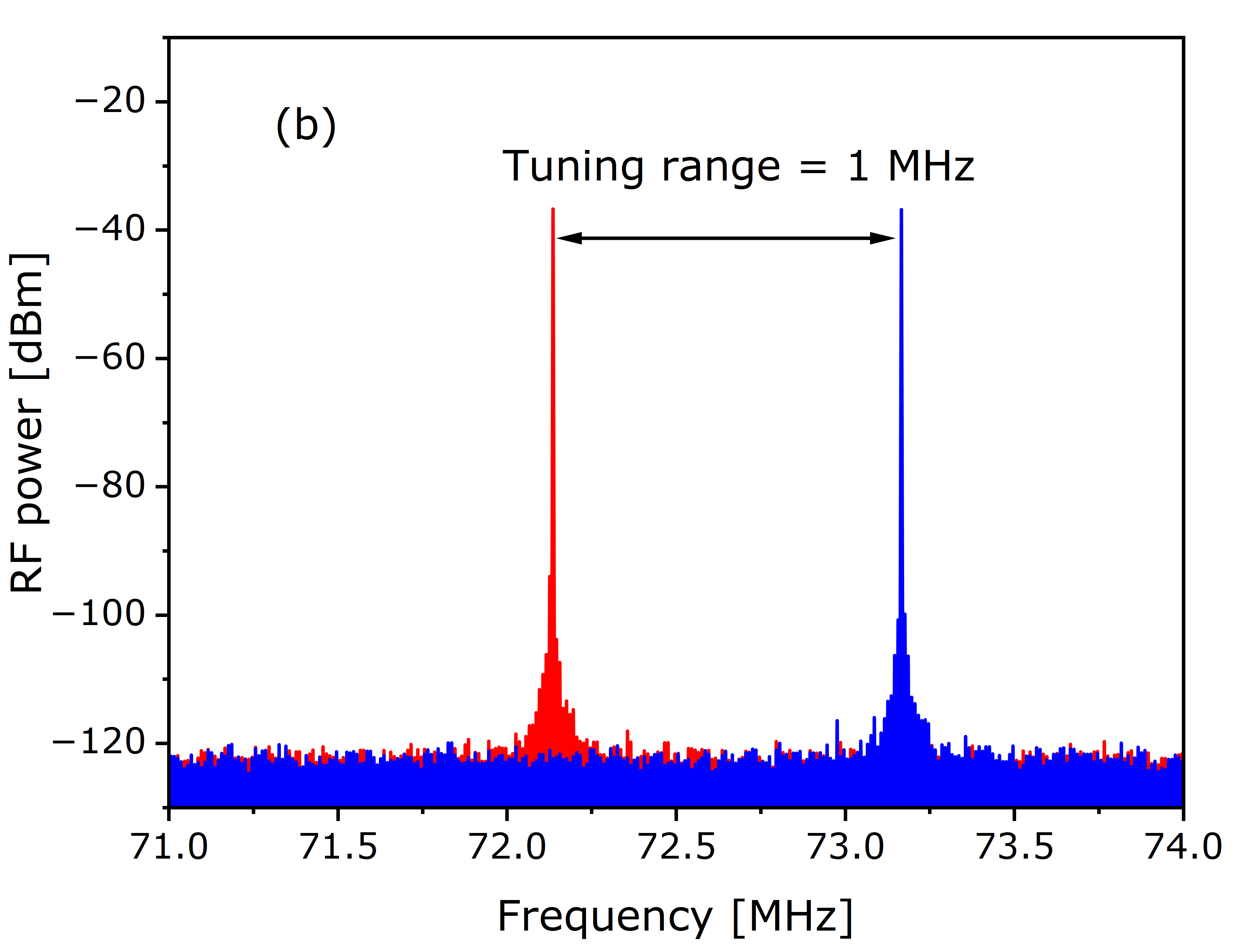

RF spectrum of the oscillator’s output measured at two boundary settings of the intracavity delay line
-

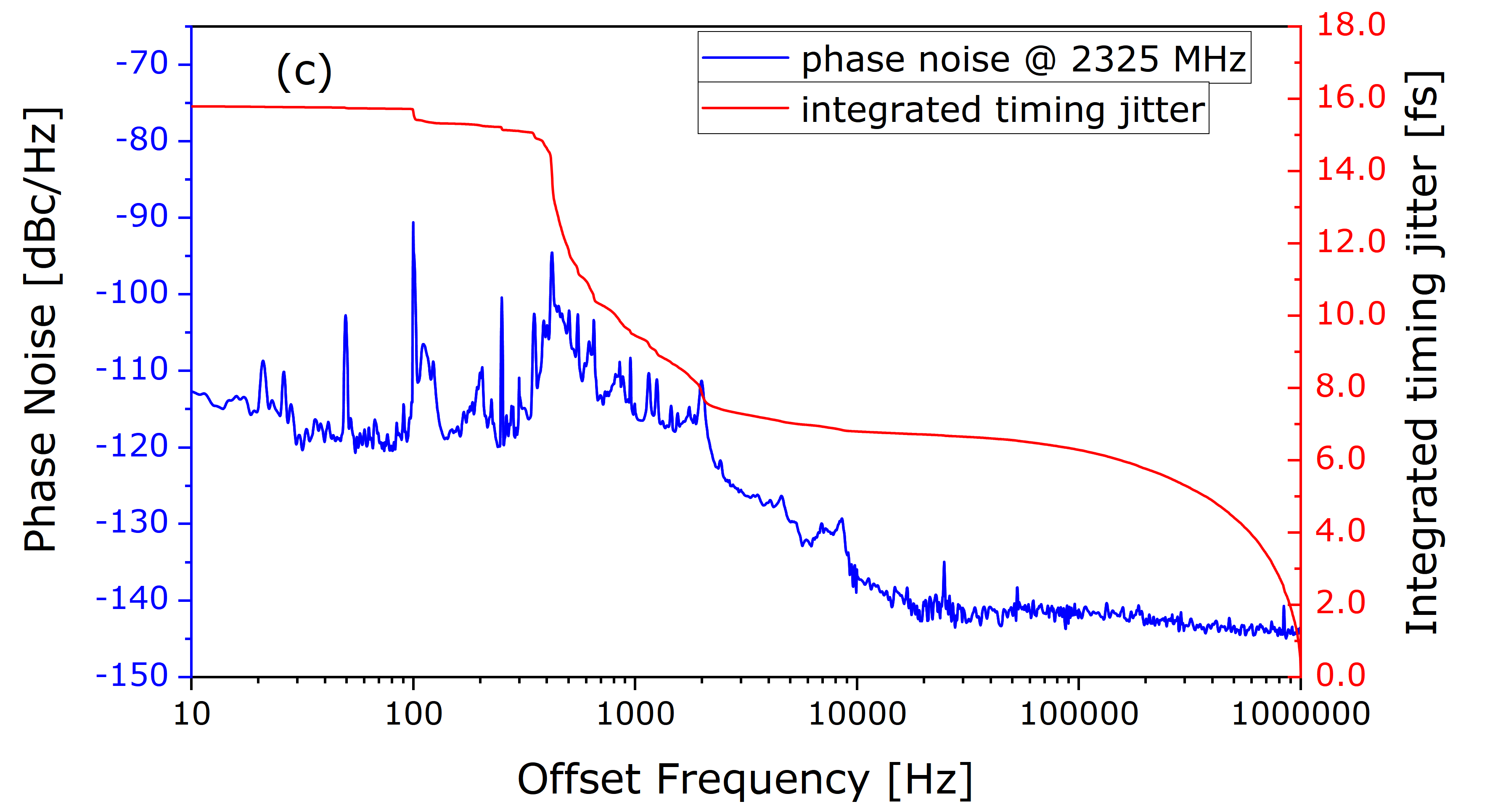

Phase noise measurement of the oscillator stabilized to a 2325 MHz frequency reference
-
